Regarding 18 Note Music Box Mechanisms: Complete Guide to Standard, Mini & Deluxe Types
*An 18-note music box mechanism is defined by its core sound-producing component—the music comb, which is fitted with 18 individual tine keys. As one of the most widely adopted musical movement categories in the industry, 18-note mechanisms are divided into three primary variants: Standard 18
*Note, Mini 18 Note and Deluxe 18 Note. Below is a detailed breakdown of each type to support your music box product design and sourcing decisions.
A) Standard 18-Note Music Box Mechanism
The standard 18-note music box mechanism is the best-selling model across all 18-note variants, and delivers the highest cost-performance ratio among all music box movement specifications on the market.
Core Features
· Three drive options: Available in spring-wound (clockwork), hand-crank operated and electric motor-driven configurations.
· Universal core components: The music cylinder and music comb—the "soul" of the music box—are fully interchangeable across all three power types. This means all music tune libraries are universally shareable between standard 18-note movements regardless of drive system.
· Consistent mounting dimensions: All variants share nearly identical chassis sizes; most critically, the three mounting screw holes on the chassis are positioned with 100% uniformity, enabling seamless drop-in replacement.
· Scalable, consistent production: Leading manufacturers such as FEMELODY produce standard 18-note mechanisms using automated robotic equipment, ensuring exceptional product consistency, high production efficiency and large output capacity—all of which drive its outstanding value.
· Customizable accessories & finishes: Supports a wide range of optional add-ons including brake accessories and rotating brackets, as well as decorative finishes such as gold-plated 18-note movements.
Ideal Application
If you are developing a music box for market launch, the standard 18-note music box mechanism should be your primary selection, thanks to its versatility, reliability and cost efficiency.
2. Mini 18-Note Music Box Mechanism
The mini 18-note music box mechanism features a significantly more compact chassis while retaining the full 18-tine music comb. It is also offered in spring-wound, hand-crank and electric motor-driven versions.
Core Features
· Shorter play duration: Despite having 18 notes, the reduced cylinder size yields a shorter melody clip. A standard 18-note mechanism can play up to 20 seconds of music, while the mini 18-note version reaches a maximum of approximately 15 seconds. For spring-wound models, a fully wound mini mechanism runs for about 2 minutes, compared to 3 minutes for the standard 18-note version.
· Dedicated mould required: The music cylinder and comb of the mini 18-note mechanism are not compatible with the standard 18-note specification. While standard 18-note tune lists can be referenced for adaptation, new mould must be produced to manufacture mini-specific cylinders and combs.
· Higher manufacturing cost: The compact design increases production complexity, resulting in a unit cost nearly double that of the standard 18-note mechanism.
Ideal Application
The mini 18-note mechanism is a suitable choice for premium-priced, space-constrained music box designs where a small form factor is a core design requirement.
3. Deluxe 18-Note Music Box Mechanism
The deluxe 18-note music box mechanism's core advantage can be summed up simply: superior visual quality and craftsmanship.
Core Features
· Premium aesthetic finish: Features a polished surface with gold plating. Its music cylinder adopts the pin-inserted production process—a high-precision technique typically reserved for premium 30+ note music box movements.
· Standard mounting compatibility: Chassis dimensions and mounting screw hole positions are fully identical to those of the standard 18-note mechanism, allowing direct interchangeability in housing design.
· Independent tune development: Due to the pin-inserted cylinder construction, its tune library is not directly compatible with standard 18-note movements. Tunes must be re-developed from standard references, and play duration is slightly shorter than the standard 18-note version.
· Drive type: Currently only available in spring-wound configuration.
Ideal Application
This deluxe variant is recommended for high-end music box designs with transparent enclosures or exposed movements, where the mechanism itself forms part of the product's visual display and premium market positioning.
------------------------------------------------------------------
Reference Images,

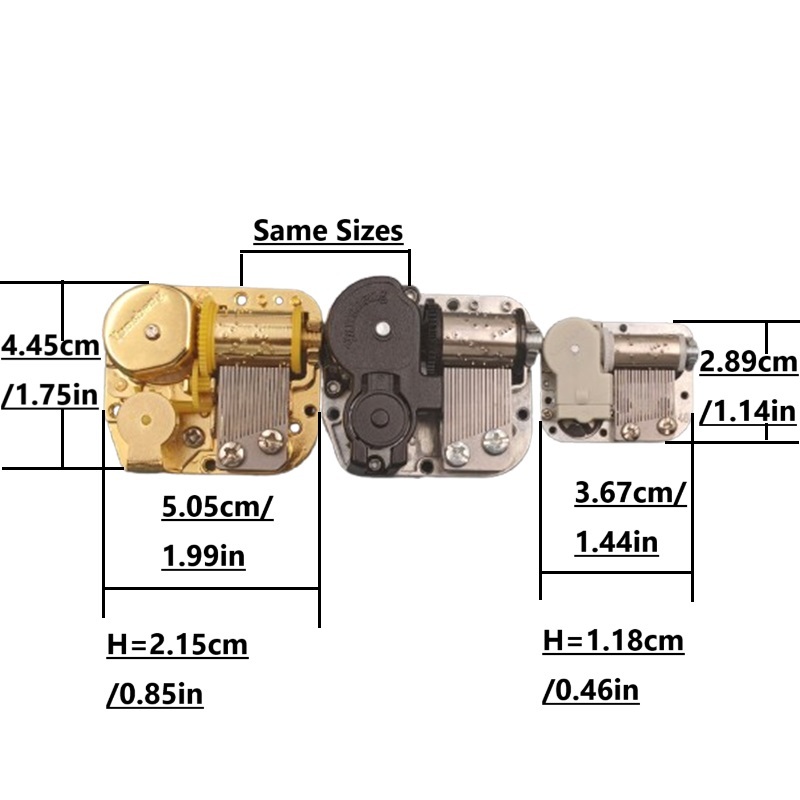

- Spring driven Standard 18 note music box movement and Miniature 18 note Music box movement,
- Deluxe 18 note musical movement,

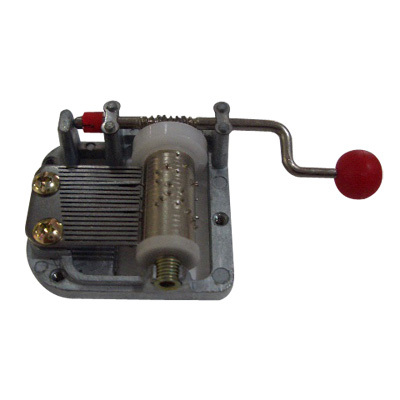

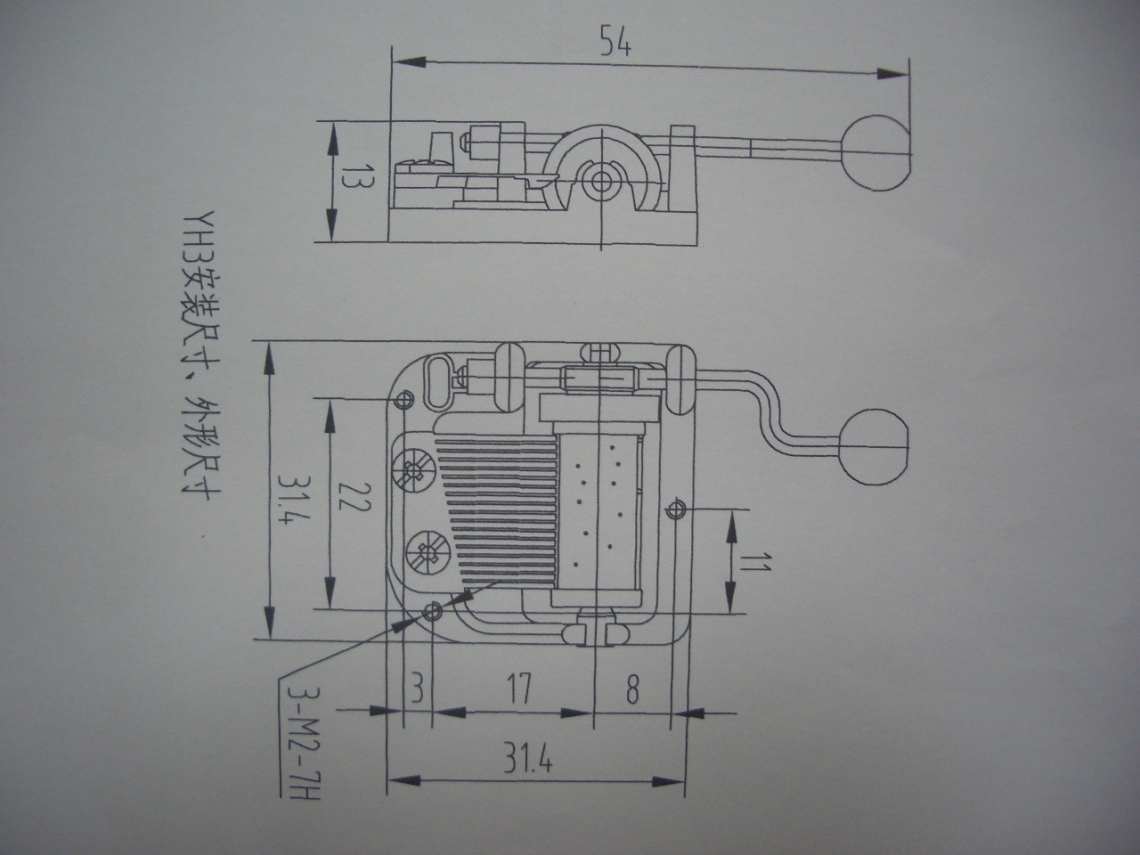

- Hand Crank Music Box Mechanism,

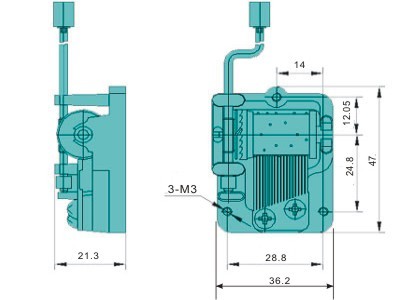

- Hand crank miniature 18 note music box mechanism,
- Name of Parts (Spring driven model)

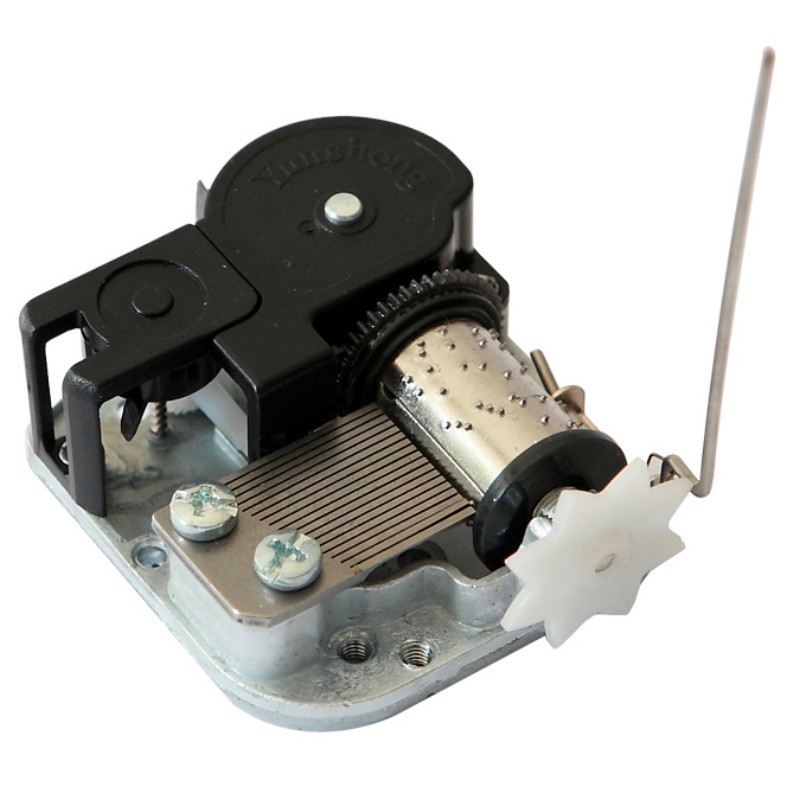

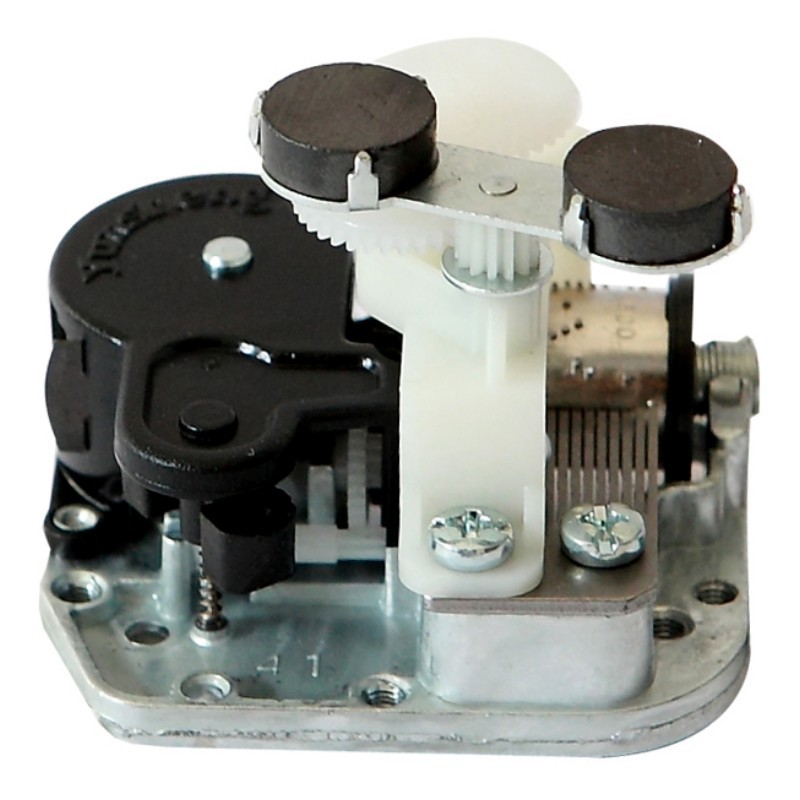

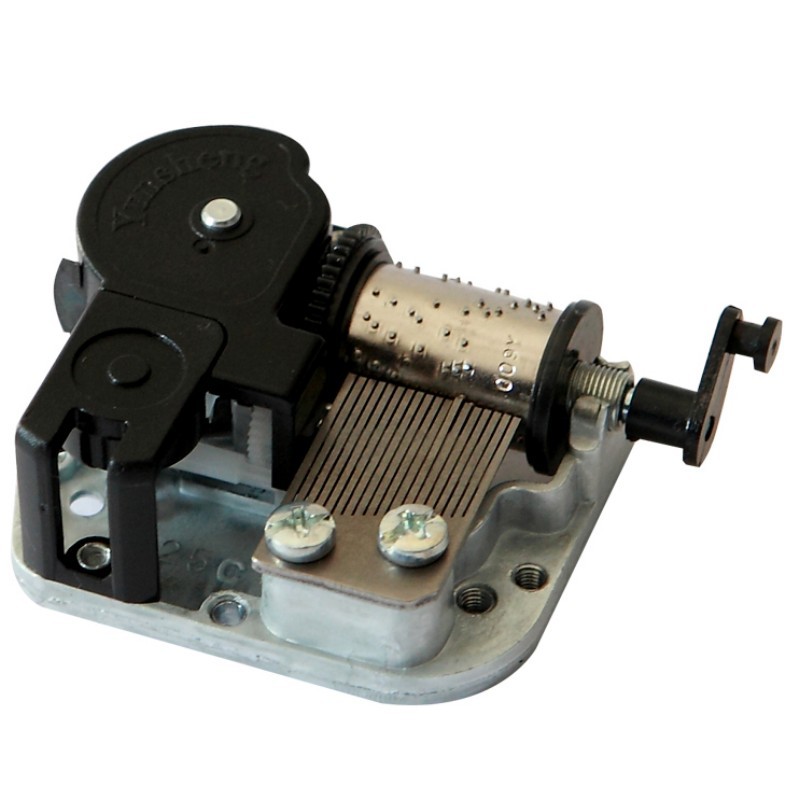

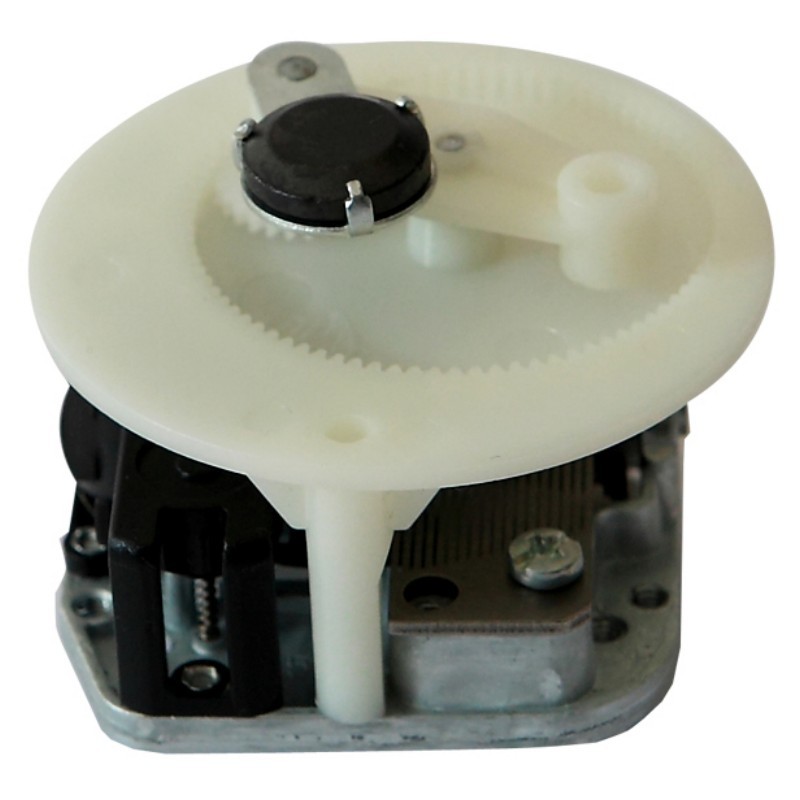

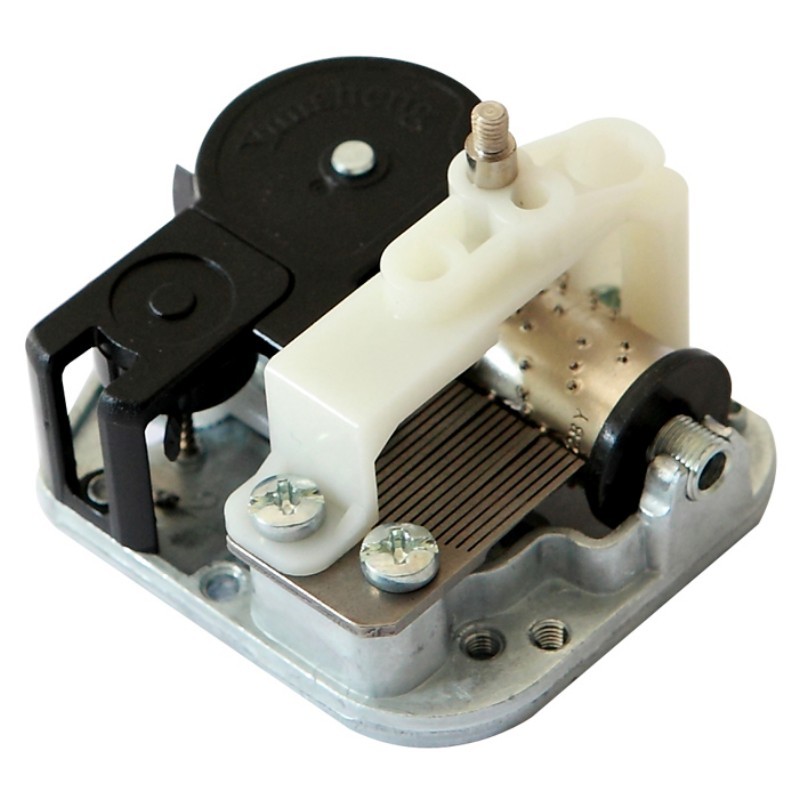

- Standard 18 note musical movement with Various attachments,
